Seed and skin handling
Retention changes texture and visual identity; removal changes yield, screening duty, waste handling, and the evidence needed to describe the product.
Configurable process flow

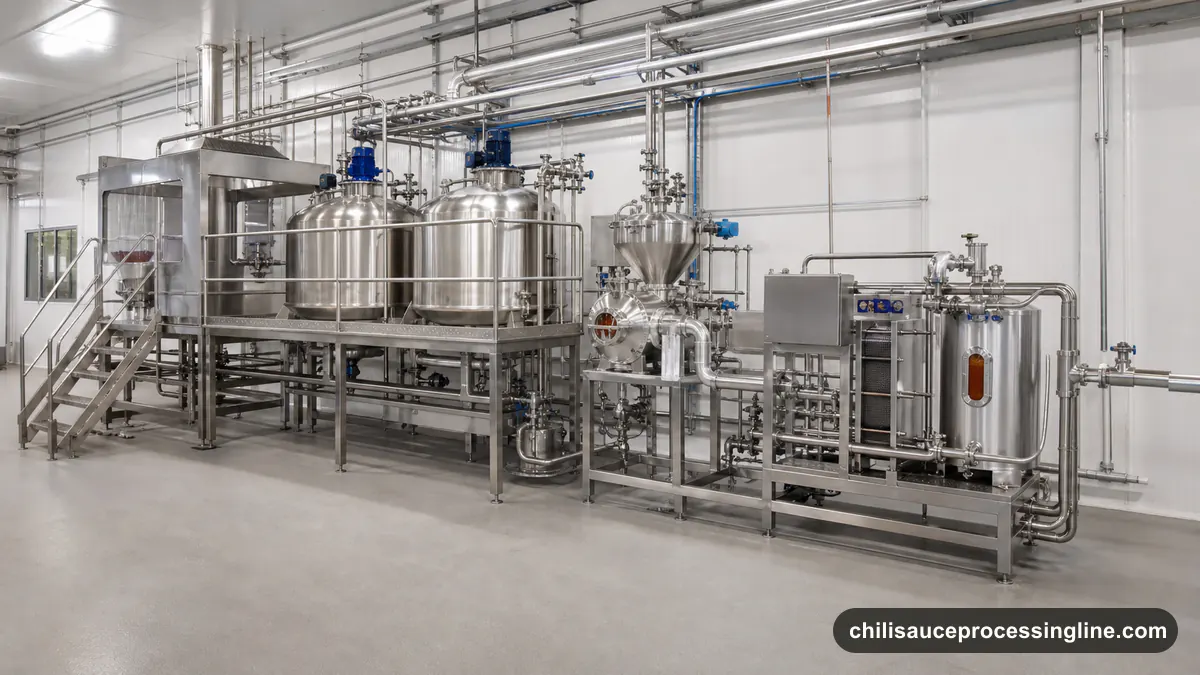

Chili sauce manufacturing process and equipment flow.
There is no single standard chili sauce flow. The useful diagram shows required steps, optional branches, hold points, rework rules, cleaning routes, and responsibility boundaries.
Reference flow
Map the main path and every conditional branch.
01
→Receive & inspect
Raw condition, lot identity, sampling, contaminants, rejects.
02
→Sort & wash
Foreign material, stems, soil load, water quality, drainage.
03
→Reduce size
Cut, crush, pulp, screen, retain or remove seeds and skins.
04
→Formulate
Meter additions, disperse, mix, sample, control allergens.
05
→Process
Cook; optionally homogenize, deaerate, or concentrate; apply validated controls.
06
Fill & close
Buffer, fill, close, cool as required, inspect, code, pack.
Branch points
Keep optional operations conditional.
Mixing and heating
Sequence, agitation, shear, heating method, fouling, hold-up, batch end point, and cleaning must suit the recipe.
Optional finishing
Fine grinding, homogenization, deaeration, concentration, and intermediate screening should exist only when the product brief and trials justify them.
Packaging route
Filling mechanism, product temperature, container, closure, cooling, inspection, code, and secondary pack form one linked system.
Conditional equipment list
Name the function, interface, and proof—not just the machine.
| Process function | Possible equipment | Critical interface | Evidence before selection |
|---|---|---|---|
| Receive and prepare | Bins, conveyors, washers, sorting tables, destemmers, cutters, crushers or pulpers | Raw condition, water and drainage, foreign material, seeds/skins, rejects and labor | Representative feed specification, sampling plan, yield and reject definition |
| Formulate and mix | Weighing or dosing, powder induction, jacketed vessel, agitator, high-shear mixer | Addition sequence, dispersion, torque, heating, foam, allergen and batch identity | Recipe envelope, trial protocol, usable volume, mixing and sampling acceptance |
| Finish and transfer | Screen, mill, homogenizer, deaerator, pump, valve manifold and buffer | Particle/fiber passage, shear, gas, pressure drop, temperature, hold-up and cleaning | Before/after samples, flow curve, particle method, route diagram and cleanability review |
| Stabilize | Product-specific batch or continuous thermal system and approved controls | Actual formulation, flow or residence behavior, particles, package and deviation logic | Qualified scheduled or validated process and defined recording responsibility |
| Fill and pack | Supply tank, filler, closer or sealer, cooling as required, inspection, coding and secondary pack | Product temperature/history, gas, particles, container, closure, headspace and reject handling | Representative product-and-pack trial, closure checks, fill acceptance and line-balance test |
Filling & bottling interface
The filling machine receives every unresolved upstream decision.
Filler selection is not a viscosity-only choice. Supply temperature, shear history, free liquid, suspended particles, fibers or seeds, entrained gas, feed pressure, agitation, buffer level, nozzle and valve passages, container handling, closure, headspace, inspection, cooling, and changeovers must be tested as one packaging route.
For FAT or product trials, state the actual or justified representative sauce, container and closure, fill condition, test duration, startup and refill behavior, sampling, fill-weight or volume method, spills and rejects, cleaning steps, deviations, and acceptance tolerance. Do not present empty-container peak speed as saleable output. These are engineering planning requirements, not claims attributed to one regulator.
For applicable United States acidified or low-acid canned-food context, FDA inspection guidance separately identifies product style, processing method, container, time and temperature, and other critical factors as process-filing information. FDA process-filing factors
Food-safety handoff
Do not use a flow diagram as the scheduled process.
A marketing flow cannot establish microbiological safety, critical limits, shelf life, or market compliance. The food-safety plan and process authority must use the actual formulation, process, package, distribution, facility, and records. FDA preventive-controls rule Codex GHP/HACCP framework
Mark sampling, measurement, deviation, hold, release, and rework points on the engineering documents so the physical line can support the approved control plan.
Minimum process package
Ask for these documents before layout is frozen.
- Product and packaging design basis
- Process flow diagram and operating narrative
- Mass-balance and capacity basis
- Equipment list and battery limits
- Utility summary and peak-demand assumptions
- Control points, instruments, and cause-and-effect
- Cleaning circuits and manual-cleaning boundaries
- Sampling, hold, rework, and waste paths
