Plant integration
Integrate utilities, controls, layout, and packaging as one line.

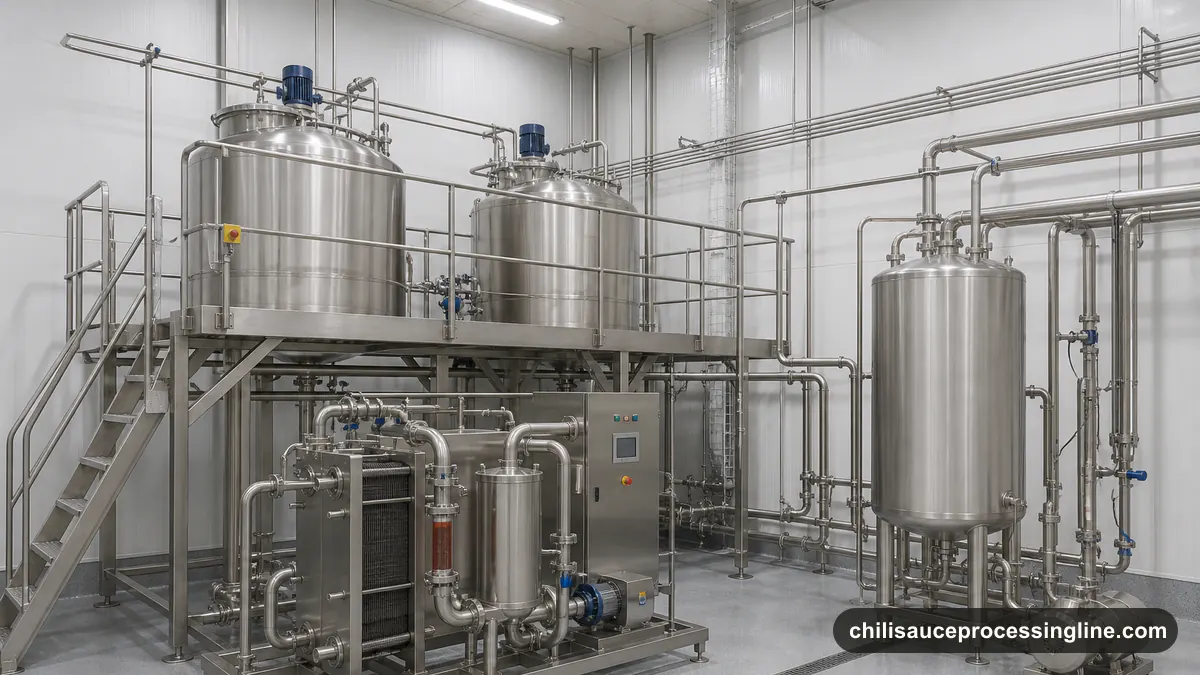

A complete line is a set of negotiated boundaries between process modules, utilities, building services, controls, people, packaging, documentation, and the parties delivering them.
Unloading, storage, sampling, rejects, water, waste, feeding, operator tasks.
Mechanical, electrical, piping, control, software, safety, product, and cleaning handoffs.
Quality, pressure, temperature, flow, peak demand, return, treatment, metering, connection point.
Container supply, accumulation, closure, inspection, coding, reject, conveyors, secondary pack.
Floor loads, levels, drainage, access, maintenance removal, ventilation, zoning, egress.
Recipes, users, trends, batch records, alarms, audit trail, exports, backups, owner.
Ask for average, peak, quality, and recovery conditions.
Utilities are product and operating-state dependent. Start-up, simultaneous heating, cleaning, cooling, and package change may create peaks that the average figure hides.
Give every handoff an owner, state, limit, and acceptance test.
| Interface | Define before layout freeze | Verify before handover |
|---|---|---|
| Process to packaging | Buffer philosophy, product condition, pressure/level control, starvation/blocking, diversion, reject and cleaning boundary | Normal, low/high level, stop/restart, changeover and representative product-pack trial |
| Utilities to users | Connection point, quality, pressure, temperature, peak/average flow, return, simultaneous cases, metering and owner | Measured installed conditions during startup, production, cleaning and recovery states |
| Equipment to building | Loads, anchoring, access, lifts, drains, curbs, hygiene zones, ventilation, egress and maintenance removal | Installed clearances, safe access, drainage, containment and removal-path inspection |
| Module to controls | Signal and data ownership, healthy/ready/run/fault states, stop categories, time, users, records, backup and recovery | Forced-state handshake tests, alarm/cause-and-effect results, data export and restore test |
Product flow, people flow, cleaning flow, waste, and maintenance need compatible routes.
Place raw handling, exposed product, filled packs, chemical storage, cleaning return, waste, maintenance access, operator stations, ventilation and drainage against the facility's zoning and hazard plan. Show slopes, low points, hose or spray reach, open-product exposure, overhead contamination risks, pressure relationships and temporary work areas.
Use a three-dimensional access review before approval: trace normal operation, inspection, sampling, part removal, lifting, clean-out, spill response, emergency egress and future expansion. A compact layout that cannot be cleaned, operated or maintained safely is not an integrated line.
Write the handshakes before commissioning.
Define signal ownership, healthy, ready, run and fault states, line stop categories, accumulation logic, recipe parameters, authority levels, alarm philosophy, time synchronization, data retention, remote access policy, cybersecurity boundary, backups, and recovery tests.
At FAT, force interface states and record expected responses. At SAT, verify the installed network, instruments, utilities, field devices, safety systems, and package flow under approved conditions.
Do not freeze layout without these.
- Battery-limit and responsibility matrix
- Equipment and instrument list
- PFD and agreed P&ID scope
- General arrangement and access envelopes
- Utility load schedule and connection details
- I/O, controls narrative, and cause-and-effect
- Drain, waste, ventilation, and zoning assumptions
- Installation, commissioning, FAT, and SAT plan
